Product Description:
Reference standard: ROHS,ISO9001:2000,CE
Material of conductor:ccag/cca/cca+ccs/A copper(99.99%copper)/B copper(85% copper)
diameter:23awg/24awg/26awg/28awg
RoHS complied PVC, PE or LSZH jacket
Complies to TIA/EIA-568B&ISO/IEC 11801
Application:
Ethernet, 10 Base-T, 100 Base-T4, ATM, TP-PMD Seppch, Telephone, Multimedia, Trunk Wiring
Cable Construction:
Conductor Dimension: 0.50mm
Core Dimension: 0.91mm 0.92mm
No. Of Pairs: 2 or 4
Nom. OD: 5.3mm 14.0mm 13.0mm
Type of Jacket: PVC/PE PVC/PE PVC/PE
Electrical Characteristics:
Frequency(MHz): 1 4 10 20 31.25 62.5 100
Attenuation(dB/100m): 2.0 4.1 6.5 9.3 11.7 17.0 22.0
Impedance(ohm): 100 100 100 100 100 100 100
Return Loss(dB): 17 20 22 20 18 16 15
NEXT(dB/100m): 62.3 53.3 47.3 42.8 39.9 35.4 32.3
ELFEXT: (dB/100m): 61 49 41 35 31 25 21
PS NEXT(dB/100m): 62.3 53.3 47.3 42.8 39.9 35.4 32.3
PS ELFEXT: (dB/100m): 61 49 41 35 31 25 21
Note: new material of PE/PVC
PE:150Degree PVC:80Degree
Work temperature:-20degree to 70degree
Testing: put the cable into the fridge and adjust the temperature lowest until 24 hours ,it will not broken.
Packing:
1.305m/color box(can design according to customer requirement)
three color box/CTN(61.5*35.8*36.5)
1050boxes/ 20 GP 2100boxes/40GP 2500boxes/40HQ
Other lengths available according to client's request.
sample can be free available if want to final checking .
BLG can produce various specification of Lan cable including cat5e,cat6,cat6e etc...(UTP Cat 5E / FTP Cat5e Lan Cable)

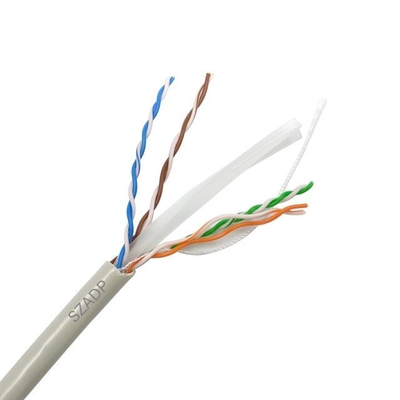

Type: UTP Cat 5E / FTP Cat5e Lan Cable
Standard: ROHS/CE
Description:
Buyer's specification's are welcomed
Frequency |
Return Loss |
Attenuation |
NEXT |
PSNEXT |
ELFEXT |
PSELFEXT |
Characteristic Impedance |
Transmission Delay |
MHZ |
dB |
dB |
≥dB |
dB |
≥dB |
≤dB |
Ω |
≤ns/100m |
1.0 |
20.0 |
2.0 |
65.3 |
62.3 |
64.0 |
61.0 |
100±15 |
570.0 |
4.0 |
23.0 |
4.1 |
56.3 |
53.3 |
52.0 |
49.0 |
100±15 |
552.0 |
10.0 |
25.0 |
6.5 |
50.3 |
47.3 |
44.0 |
41.0 |
100±15 |
545.4 |
16.0 |
25.0 |
8.2 |
47.2 |
44.2 |
39.9 |
36.9 |
100±15 |
543.0 |
20.0 |
25.0 |
9.3 |
45.8 |
42.8 |
38.0 |
35.0 |
100±15 |
542.0 |
31.25 |
23.6 |
11.7 |
42.9 |
39.9 |
34.1 |
31.1 |
100±15 |
540.4 |
62.5 |
21.5 |
17.0 |
38.4 |
35.4 |
28.1 |
25.1 |
100±15 |
538.6 |
100.0 |
20.1 |
22.0 |
35.3 |
32.3 |
24.0 |
21.0 |
100±15 |
537.6 |
1) Packing Lengths: 305m/roll
Other lengths available according to client's request.
2) Inner packing: Wooden reel, plastic reel, and paper reel available.
3) Outer packing: Carton box, pull out box, pallet available.
4) Other packing available according to client's request.
Guangzhou ADP Wire & Cable Co., Ltd,was established in 2002 and is a professional manufacturer of power cable 1mm2-500mm2, optical fiber cable 1-288cores, telecommunication cable 1-200pair, coaxial cable and accessories.Our total manufacturing area is 20000 square meters, with a lot of International standards cable equipment, such as high speed cross product lines, high speed cross supervisor data return line systems (Zumbach) and a Cat6 twister system. Our products strictly adhere to ISO9001, CE and RoHS international standards, also covering our design, development, service and management. We have more than 100 employees, including 20 technical personnel. Our annual production value reaches USD200,000,000, giving us stable development and increased competitive power within the markets. For the past ten years since its foundation. we have been sticking to"equality. mutual benefit and Quality First" foreign trade policies and we have established extensive business relation with countries and regions all over the world.Welcome to visit our factory.
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: 30% T/T in advance ,balance before shipment
